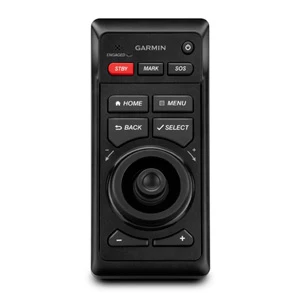

Garmin 010-01024-00 GRID Remote Input Device

Take control

The Garmin Remote Input Device provides full
control of all GPSMAP 8000 Glass Helm series units. Rotary knob and
joystick controls provide navigation through menus and screens and
allows you to seamlessly navigate between monitors at a station –
all while controlling single or multiple 8000-series monitors and
multifunctional displays (MFDs) with 1 device. GRID can be
integrated into a captain’s chair for a low-profile controlling
solution.

Garmin 010-01024-00 GRID Remote Input Device
Specifications:

• Dimensions (WxHxD): 3 1/16 x 6 7/8 x 2 3/8 (77 x 174.8 x 60
  mm)
• Weight: 9.1 oz. (258 g)
• Temperature range: From 5 degrees to 158 degreesF (from -15
  degrees to 70 degreesC)
• Material: Fully gasketed, high-impact plastic, waterproof to
  IPX7 standards
  I
• nput power: 10-35 Vdc
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.8 W
• Typical current draw at 12 Vdc: 100 mA
• Maximum current draw at 12 Vdc: 280 mA
• Compass-safe distance: 14 (356 mm)

What’s in the box:

• GRID (Garmin Remote Input Device)
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation

Garmin 010-01024-00 GRID Remote Input Device Installation
Instructions
