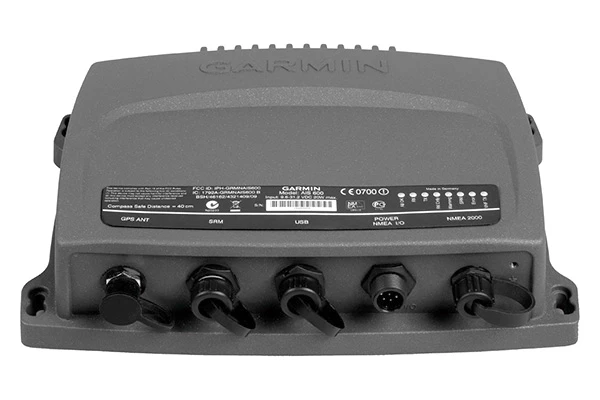

Garmin AIS 600 Blackbox Transceiver

Add a new level of safety and convenience to your vessel

The Garmin AIS 600 Blackbox Transceiver allows you
to receive AIS target data as well as transmit your own vessel
information to other AIS receivers in your area. The AIS 600 aids
in collision avoidance by helping you track and contact anyone in
the area with an MMSI number. Whether you’re keeping in touch with
mariners in the area or tracking other boats on a similar course,
you’ll be able to share information between vessels for improved
safety and greater confidence on the open waters. The AIS 600 also
employs ClearTrack technology, which ensures there’s no
interruption of AIS traffic position while the VHF radio is in use.
In addition, the AIS 600 integrates with a Garmin chartplotter and
VHF radio via NMEA 2000, giving you the ability to initiate a call
to any MMSI target directly from the chartplotter by selecting the
“call with radio” function.

Installation Made Easy
The Garmin AIS 600 Blackbox Transceiver is
controlled via chartplotter display. You’ll have all the
information you need right at your fingertips to make decisions
with confidence. In addition, the AIS 600 comes with a built-in
Active splitter that allows one VHF antenna to serve both the AIS
600 and any VHF radio with minimal signal loss.

Garmin AIS 600 Blackbox Transceiver
Specifications:

• Part number: 010-00865-00
• Unit dimensions (WxHxD): 9.8″ x 7.1″ x 2.5″ (24.9 x 18.0 x 6.4
  cm)
• Weight: 4.2 lb (1.9 kg)
• Temperature range: From -4°F to 140°F (from -20°C to
  60°C)
• Waterproof Rating: IPX7
• Operating Voltage: 9.6–31.2 Vdc (12 Vdc or 24 Vdc boat
  battery)
• Current Drain: 2 A max
• Antenna Connector: S0-239 (50 Ω)
• Max Antenna Gain: 9 dB
• Max Port Impedance: 50 Ω
• NMEA 2000 Power Usage: LEN=2

What’s in the box:

• AIS 600
• GA 30 GPS antenna with pole and surface mount
• Power cable
• Safety related message (SRM) cable
• NMEA 2000 drop cable (2 m/6.56 ft)
• VHF interconnect cable (1.2 m/3.94 ft)
• Mounting hardware
• NMEA 2000 T-connector
• USB cable
• PC/Software CD
• Documentation
