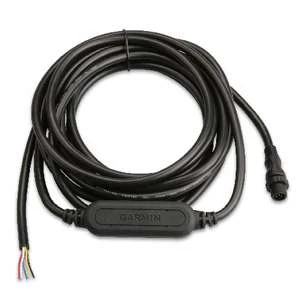

Garmin GFL-10 Fluid Level NMEA 2000 Adapter

Bring any helm into the digital age

With the help of the GFL 10 Fluid Level Analogue
Adapter aboard your vessel, you can give new life to your
old gauges by making the transition from analogue to digital. This
simple-to-install adapter takes the data generated by traditional
analogue gauges and converts the data into a NMEA 2000 signal so
you can create or expand your network without replacing all of the
equipment on your boat.

Connect to Your Network
With the GFL 10 adapter, you can convert analogue information
provided via the fluid-level sensor (not included) on your boat to
your NMEA 2000 network. The GFL 10 allows you to observe
fluid-level information on compatible Garmin display devices
connected to your NMEA 2000 network.

Upgrade With Ease
The NMEA 2000 analogue adapters from Garmin are easy to add to any
existing marine network. Once installed, the data from the adapters
can be viewed via the GMI 10 Marine Instrument Display and other
compatible Garmin devices. This easy-to-use set-up will help you
bring your older dashboard into the digital age.

Garmin GFL-10 Fluid Level NMEA 2000 Adapter
Features:

• Takes signals generated by traditional analogue gauges and
  sensors and convert that data into NMEA 2000 format
• Allows you to observe fluid-level information on compatible
  Garmin display devices connected to your NMEA 2000 network
• Brings even the most out of date dashboard into the digital
  age

Garmin GFL-10 Fluid Level NMEA 2000 Adapter
Specifications:

• Unit dimensions (WxHxL): 24.7 x 17.0 x 78.6 mm
• Weight: 365 g
• Total cable length: 16 ft. (4.9 m)
• Temperature range: From -15°C to 70°C
• Compass Safe Distance: 2 in. (5 cm)
• Power Input Source: 9-16 Vdc from the NMEA 2000 bus
• NMEA 2000 Power Usage: 1 W max
• NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)
