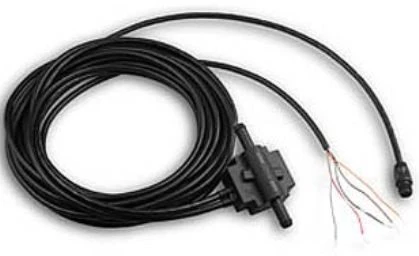

Garmin GFS10 Fuel Sensor

Monitor fuel levels and fuel flow

The Garmin GFS 10 Fuel Sensor adds fuel tracking
capabilities to your Garmin chartplotter and optimises your boat’s
fuel economy. It tracks fuel flow use and sends the data to your
chartplotter via the Garmin CANet or NMEA 2000 to help you find the
most efficient operating speed and enhance your performance. Unlike
other fuel flow sensors, the GFS 10 will include fuel level sensing
capability when connected to an existing analogue fuel gauge or
resistive fuel tank sensor. This important information will help
you have a better idea of your fuel so you will never run out of
gas again.

Garmin GFS 10 Fuel Sensor Features:

• Adds fuel tracking capabilities to your Garmin
  chartplotter
• Tracks fuel flow use and sends the data to your
  chartplotter
• Includes fuel level sensing capability when connected to an
  existing analogue fuel gauge or resistive fuel tank sensor

Garmin GFS 10 Fuel Sensor Specifications:

• Design: 3/8-inch barbed fittings
• Maximum flow rate: up to 50 GPH per engine
• Minimum flow rate: 2 GPH
• Maximum back pressure: 0.5 PSI at 20 GPH/1.0 PSI at 40
  GPH
• Supply voltage: 10-22 V
• Fire resistant

What’s in the box:

• GFS 10
• Mounting hardware
• Fuel filter
• 4 reusable stainless steel hose clamps
• NMEA 2000 to CANet adapter cable
• NMEA 2000 T connector
• Documentation

Note: Requires NMEA 2000 to connect.
