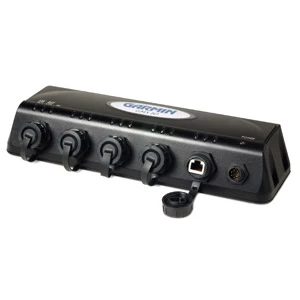

Garmin GMS 10 Network Port Expander

The network’s nerve center

Connect multiple multifunction displays and sensors to the same
network using the Garmin GMS 10 Network Port
Expander. This 100 Mb switch allows you to connect
multiple chartplotters and sensors over the Garmin marine network
and gain the benefit of Ethernet-like data transfer speeds. Now you
can share information such as weather, mapping and sounder data as
well as position information among your Garmin marine network
devices for better data integration.

Just Plug-and-Play
The GMS 10 and the Garmin Marine Network are completely
plug-and-play, which means all peripherals are automatically
detected and readily accessible once they’re connected to the
network. Likewise, you easily can expand your system using the same
standard data cable to plug additional units and displays into the
GMS 10 network ports.

Waterproof Your Connections
The rugged GMS 10 is specifically designed to withstand the
corrosive marine environment. All connections are totally
waterproof, and sealed covers keep harmful moisture away from
unused data ports.

Garmin GMS 10 Network Port Expander Features:

• Allows connection of multiple MFDs and sensors to the same
  network
• Network port can run at 100 megabits per second
• Complete plug-and-play network
• Withstands the corrosive marine environment, waterproofing
  connections

Garmin GMS 10 Network Port Expander
Specifications:

• Waterproof rating: IPX-7 submersible
• Voltage: 10-35V DC
• Power usage: 2.75W
• Fuse: AGC/3AG 2.0A
• Weight: 1.2lb
• Dimensions (WxHxL): 3.5 x 2.3 x 11.8 in

What’s in the box:

• Garmin GMS 10 switch
• Mounting hardware
• RJ-45 cable
• Power/data cable

Garmin GMS 10 Network Port Expander Instruction Manual
