Garmin GPS 19x NMEA 2000 Position Receiver/Antenna

Built for versatility

The highly accurate Garmin GPS 19x NMEA 2000 Position
Receiver/Antenna provides 10 Hz update rates for position,
velocity and time data. It offers high-sensitivity reception and
enhanced position acquisition to the Garmin family of marine
multifunctional displays (MFD), instrument display and autopilots.
Part of the Garmin marine instrument family, the GPS 19x NMEA 2000
is built to withstand the elements. This waterproof (IPX7) sensor
can be pole mounted or flush mounted. It also can be attached to
the underside of many fibreglass decks for added ease of
installation.

Delivers Reliable Location Data
This 32-channel receiver is capable of tracking multiple global
navigation satellite systems, including GPS, GLONASS, Galileo and
QZSS. Since more satellites are visible, it can provide more
accurate fixes in challenging conditions. With its enhanced
position, heading and speed accuracy delivered 10 times more often
than other receivers/antennas, it provides smoother drawing of your
position on the chartplotter/MFD at higher speeds.

WAAS-capable, it can determine your precise location to within 3 m
(9.84 ft).

Observable Advantages
Compared to units with slower update rates, the GPS 19x offers
dramatic improvement when used at low speeds. Position and course
information from slower units can jitter and swing considerably at
speeds below 1 mph. The GPS 19x provides a consistent and smooth
heading which is especially important when trying to hit a specific
waypoint or mark.

The GPS 19x also reflects the true boat heading smoothly and
accurately. This is especially evident when coming out of turns.
And, the GPS 19x eliminates position skipping that can occur at low
speeds and when turning the boat in an arc. The GPS 19x maintains a
smooth position throughout the turn.

Garmin GPS 19x NMEA 2000 Position Receiver/Antenna
Specifications:

• Dimensions (D x H): 3 19/32″ x 1 15/16″ (91.6 mm x 49.5
  mm)
• Weight: 7.1 oz (201 g)
• Cable length: 19 ft 8″ (6 m)
• Temperature range: -22° to 176° F (-30° to 80° C)
• Case material: Fully gasketed, high-impact plastic alloy;
  waterproof to IPX7
• Compass-safe distance: 5.9″ (150 mm)
• Power source input: 9-16 Vdc, unregulated
• Input current: 40 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)

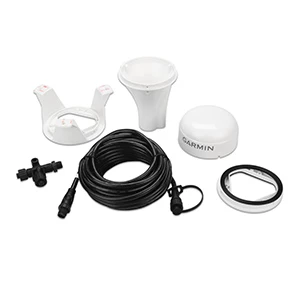

What’s in the box:

• GPS 19x NMEA 2000®
• Pole mount
• Surface mount
• Under deck mount
• NMEA 2000 backbone/drop cable (6 m)
• NMEA 2000 T-connector
• Documentation
