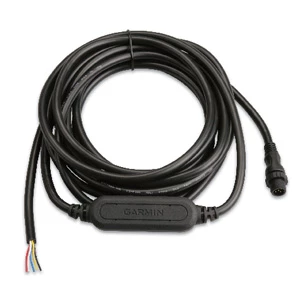

Garmin GRA 10 Rudder Angle NMEA 2000 Adapter

Give new life to your old gauges

With the Garmin GRA 10 Rudder Angle NMEA 2000
Adapter aboard your vessel, you can give new life to your
old gauges by making the transition from analogue to digital. This
simple-to-install adapter takes the data generated by traditional
analogue gauges and converts the data into a NMEA 2000 signal so
you can create or expand your network without replacing all of the
equipment on your boat.

Connect to Your Network
The Garmin GRA 10 adapter lets you convert analogue information
provided via the rudder-angle sensor (not included) on your boat to
your NMEA 2000 network. The GRA 10 also allows you to observe
rudder-angle information on compatible Garmin display devices
connected to your NMEA 2000 network.

Upgrade With Ease
The NMEA 2000 analogue adapters from Garmin are easy to add to any
existing marine network. Once installed, the data from the adapters
can be viewed via the GMI 10 Marine Instrument Display and other
compatible Garmin devices. This easy-to-use set-up will help you
bring your older dashboard into the digital age.

Garmin GRA 10 Rudder Angle NMEA 2000 Adapter
Specifications:

• Unit dimensions (WxHxL): 31/32″ x 43/64″ x 3 3/32″ (24.7 x 17.0
  x 78.6 mm)
• Total cable length: 16 ft. (4.9 m)
• Temperature range: From 5°F to 158°F (from -15°C to
  70°C)
• Compass Safe Distance: 2 in. (5 cm)
• Power Input Source: 9–16 Vdc from the NMEA 2000 bus
• NMEA 2000 Power Usage: 1.1 W max
• NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)

Garmin GRA 10 Rudder Angle NMEA 2000 Adapter Installation
Instructions
