Garmin GT15M-IH In-Hull Transducer

For installing inside a fibreglass hull

The Garmin GT15M-IH In-Hull Transducer is ideal
for boats that want to install the transducer inside a fibreglass
hull and not on the transom where cavitation could cause issues. It
can be used with a hull deadrise angle between 0 and 25 degrees and
is excellent for boats traveling at high speeds that want to
maintain accurate depth readings.

The 8-pin transducer with 4 plastic tanks features mid-band CHIRP
traditional sonar (85-165 kHz) and has a power rating of 600 W. It
can be used in conjunction with a GT30-TM transducer and an adapter
cable so you can maintain depth at high speeds and scanning
capabilities at trolling speeds.

For installation, follow the included instructions carefully to
avoid damaging your boat.

Garmin GT15M-IH In-Hull Transducer
Specifications:

• Model: Garmin GT15M-IH Plastic, In-Hull, Mid-Band CHIRP
  Transducer (85-165 kHz, 600W) (8-pin)
• Frequency: CHIRP 85-165 kHz
• Beam Width ( degrees ) LF/HF (-3dB): 24/13
• Transmit power: 600w
• Water Temperature: No
• Cable length: 20 feet
• Connector: 8 pin

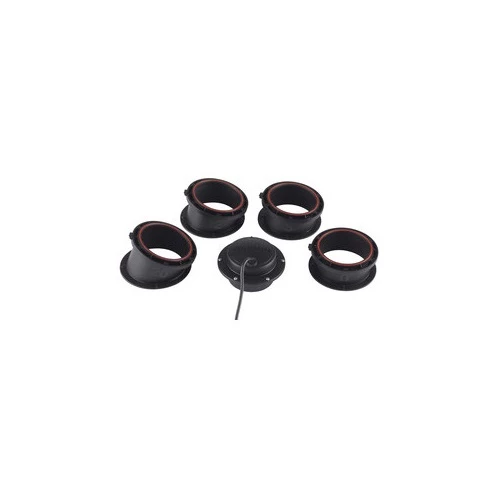

What’s in the Box:

• GT15M-IH transducer
• 4 plastic tanks
• Mounting hardware
• Documentation
