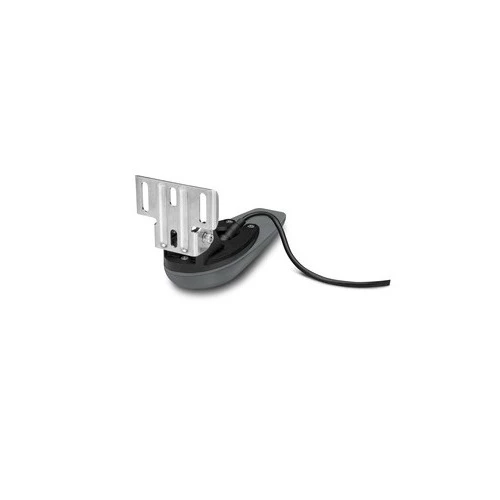

Garmin GT20-TM 8-Pin Transom Mount Transducer

Get ultra-clear sonar pictures with this all-in-one 8-pin
transducer

Perfect for fishing in shallow water – with the power of 77/200kHz
traditional and CHIRP ClearVu scanning sonar. The Garmin
GT20-TM 8-Pin Transom Mount Transducer consistently
displays fish arches as well as clear pictures of objects,
structure and fish that pass below your boat

This 20 ft transducer cable with built-in fast response temperature
sensor has a power rating of 500 W; a depth of 1,900 ft
(traditional) and 750 ft (DownV); an operating frequency of 77/200
kHz (traditional) and 455 (DownV); and a 0 to 70 transom angle.

Transducer comes with transom and trolling motor mounts, and
installation instructions. Follow the instructions carefully to
avoid damaging your boat.

Garmin GT20-TM 8-Pin Transom Mount Transducer
Specifications:

• Dimensions 5.9 x 2.0 x 0.9 in (150 x 52 x 22 mm)
• Frequencies: Traditional: 77/200 kHz
  DownV: CHIRP 435-475 kHz and CHIRP 800-840 kHz
• Transmit Power: Traditional: 500 W
  DownV: 500 W
• Maximum depth Traditional: 1,900 ft
  DownV: 750 ft
• Beam Width ( degrees ) LF/HF (-3dB): Traditional: 45/15
  DownV: 2.5×53
• Water Temperature: Yes
• Cable length 20ft
