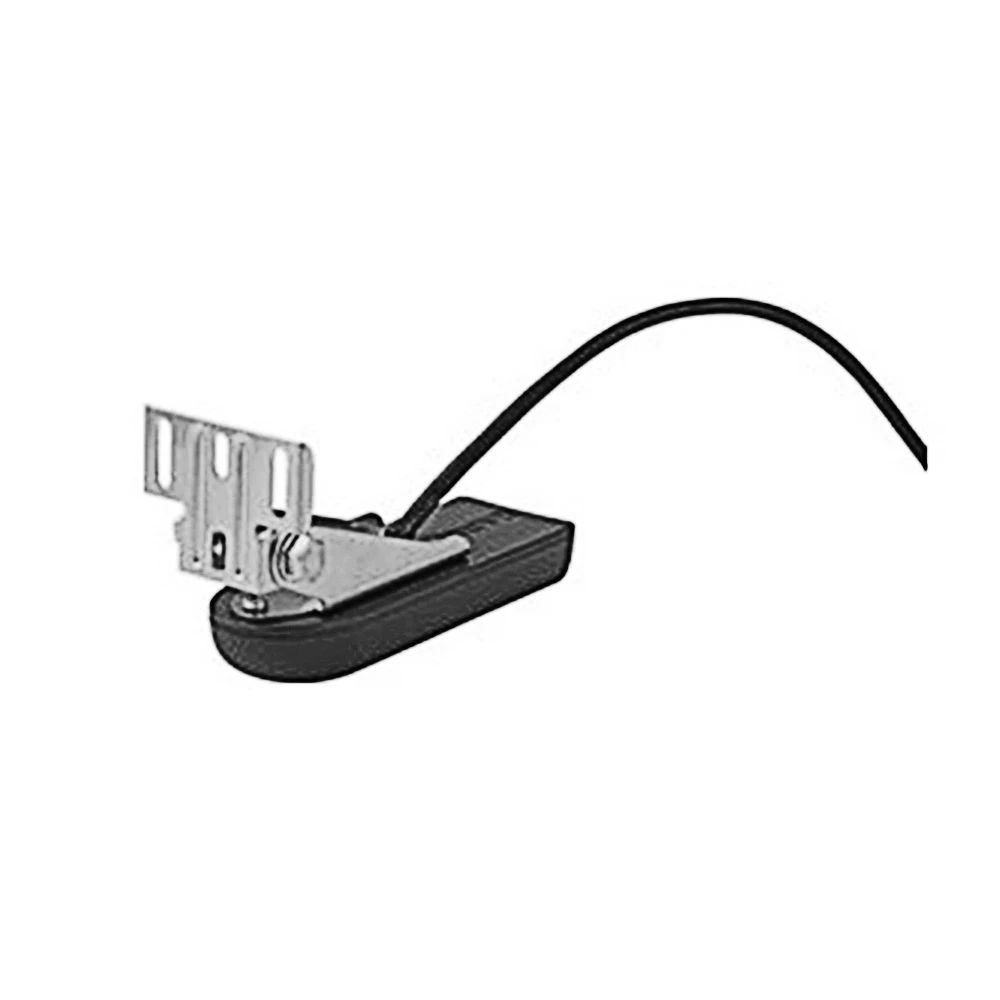

Garmin GT22HW-TM Transom Mount Transducer

GT22HW-TM transducer is perfect for freshwater fishermen who
want CHIRP traditional sonar and CHIRP DownV scanning sonar. This
transom or trolling motor mounted transducer consistently displays
clear and crisp fish arches with superior target separation as well
as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional
sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP
DownV (455/800 kHz) element has a power rating of 500 W.

GT22HW-TM is ideal for mounting to a trolling motor due to its
compact size. For installation, follow the included instructions
carefully to avoid damaging your boat.

Garmin GT22HW-TM Plastic, Transom or Trolling Motor Mount
Transducer, High Wide CHIRP (150-240 kHz, 250 W)/CHIRP DownV
(455/800 kHz, 500 W) (8-pin)

Specifications:

Frequency	Traditional: CHIRP 150-240 kHz DownV: CHIRP 425-485 kHz and CHIRP 790-850 kHz
Beam Width ( degrees ) LF/HF (-3dB):	Traditional: 24/16 DownV: 2.0×50@455 and 1.0×30@800
maximum depth	Traditional: 800 ft DownV: 500 ft
Transmit power	Traditional: 250 W DownV: 500 W
Connector	8 pin
Cable Length	20 feet

What’s in the Box:

• GT22HW-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
