Garmin GT41-THP Thru-Hull Pair DownVu/SideVu 12-Pin

This thru-hull transducer pair provides ultra-clear sonar
pictures of objects, structure and fish that pass below your boat.
These traditional sonar and CHIRP DownV/SideV transducers are
optimized for depth performance and rough conditions.

The CHIRP DownV/ SideV elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz.
The traditional sonar has a power rating of 600 W and operating
frequencies of 50/200 kHz. It includes a built-in fast-response
temperature sensor. For hull deadrises less than 25 degrees.

Garmin GT41-THP Stainless Steel Thru-Hull Pair
Feature:Features:

• DownV/SideV 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200
  kHz) Transducer with Temp (12-pin)
• Model: 010-01964-11
• UPC: 753759152871

Specifications:

DownV/SideV Capability
CHIRP	Yes
Frequency	260/455
Power	500w each total 1,500w
Maximum depth	1000 ft down, 750ft left and right
Traditional Sonar Capability
CHIRP	No
Frequency	50/200
Power	600w
Maximum depth	1,500 saltwater
Water temperature	Yes
Maximum deadrise	25 degrees

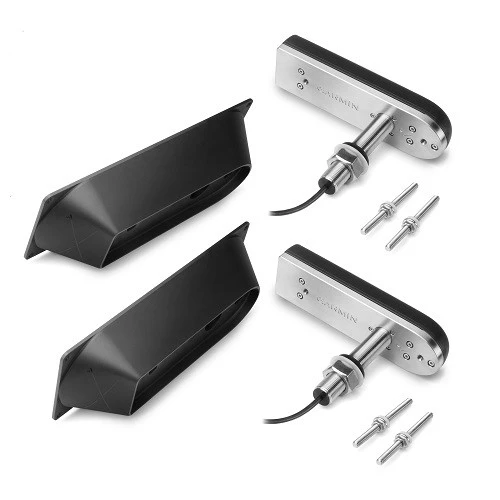

What’s in the Box:

• 12-pin port transducer with stainless steel stem
• 12-pin port transducer with stainless steel stem
• Fairing block x 2
• isolation plate and bushings x2
• Mounting hardware
• Instalation instructions
• y-cable
