Garmin GT50M-TH Thru Hull DownVu/SideVu 12-Pin

This thru-hull transducer provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. This
traditional CHIRP sonar and CHIRP DownV/SideV transducer is
optimized for clearer images at shallower depths.

The CHIRP DownV/ SideV elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 455/800 kHz.
The traditional CHIRP sonar has a power rating of 300 W and
operating frequencies of mid-band CHIRP 80-160 kHz. It includes a
built-in fast-response temperature sensor. For hull deadrises less
than 25 degrees.

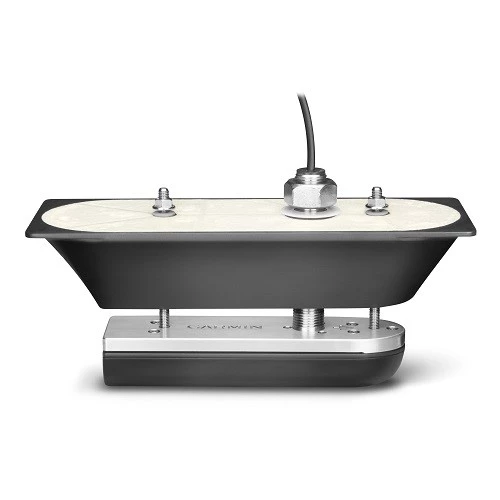

Garmin GT50M-TH Stainless Steel Thru-Hull
Features:

• DownV/SideV 500W (CHIRP 455/800 kHz) Traditional 300W (Mid-band
  CHIRP 80-160 kHz) Transducer with Temp (12-pin)
• Model: 010-01965-10

Specifications:

DownV/SideV Capability
CHIRP	Yes
Frequency	455-800
Power	500w each total 1,500w
Maximum depth	750 ft down, 500ft left and right
Traditional Sonar Capability
CHIRP	Yes
Frequency	Mid-band CHIRP 80-160
Power	300w
Maximum depth	1,500 saltwater
Water temperature	Yes
Maximum deadrise	25 degrees

What’s in the Box:

• 12-pin Stainless steel transducer
• Fairing block
• Isolation plate and bushing
• Mounting hardware
• Instalation instructions
