Garmin GT8HW-TM Transom Mount Transducer

Perfect for shallow water fishing

The Garmin GT8HW-TM Transom Mount Transducer is
perfect for shallow water fishermen who want clear bottom
definition under the boat as well as crisp, clear and wide fish
arches with excellent target separation. The wider beam width — up
to 24 degree beam angle — provides a larger coverage area in the
water.

The 8-pin transducer features high wide band CHIRP traditional
sonar (150-240 kHz) and has a power rating of 250 W. It can be
mounted on the transom or a trolling motor. Follow the included
installation instructions carefully to avoid damaging your
boat.

Garmin GT8HW-TM Plastic, Transom or Trolling Motor Mount
Transducer, High Wide CHIRP (150-240 kHz, 250W) (8-pin)

Garmin GT8HW-TM Transom Mount Transducer
Specifications:

• Model: Garmin GT8HW-TM Plastic, Transom or Trolling Motor Mount
  Transducer, High Wide CHIRP (150-240 kHz, 250W) (8-pin)
• Frequency: CHIRP 145-240 kHz
• Transmit power: 250 W
• Max Depth 800 feet
• Beam Width ( degrees ) LF/HF (-3dB): 24/16
• Read water Temperature: Yes
• Connect: 8 pin
• Cable Length: 20 feet

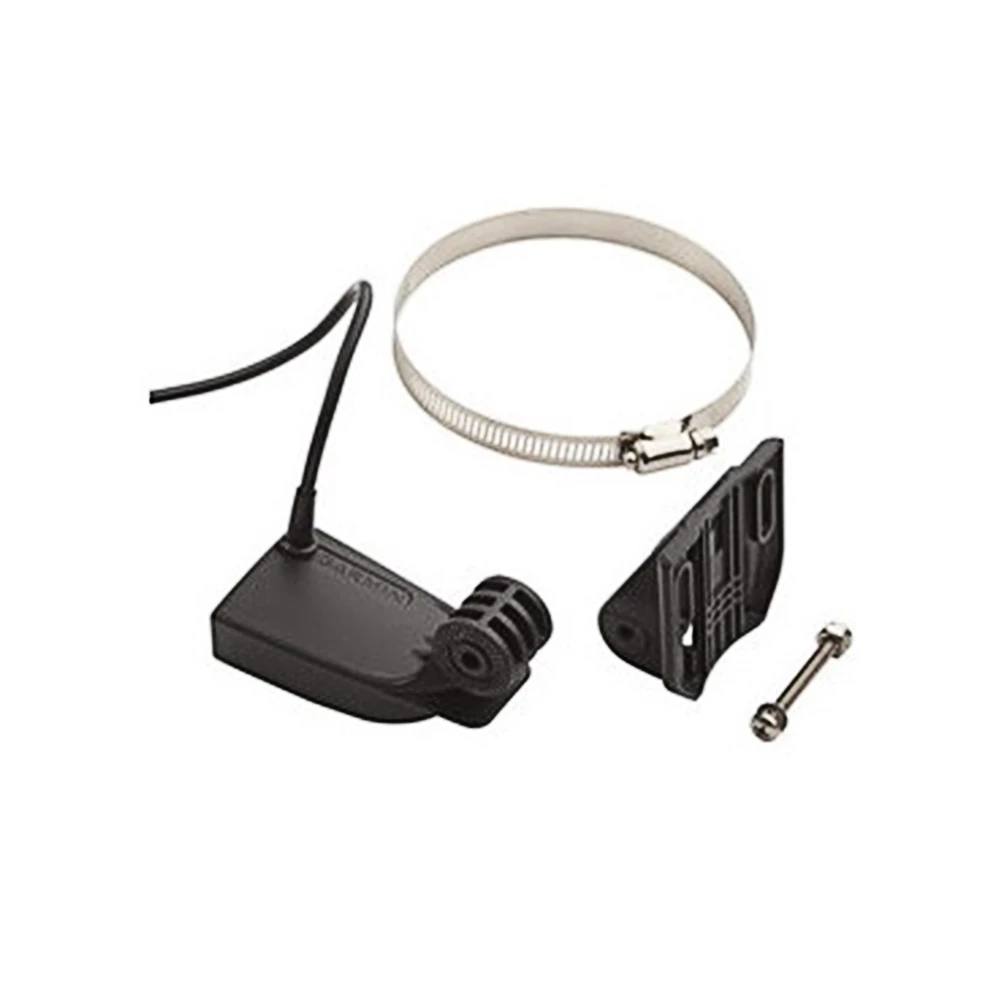

What’s in the Box:

• GT8HW-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
