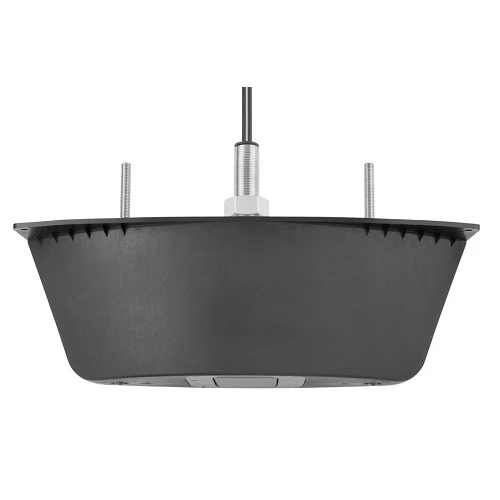

Garmin Panoptix PS60 Down Thru-Hull Transducer

Panoptix is the most unique and innovative sonar on the water.
The newest member of the Panoptix family, PS60 Thru-hull Down
Transducer, offers the same features as the PS30 transom mount
version, but in a thru-hull installation. This configuration is
ideal for coastal or offshore fishermen with larger boats. Panoptix
PS60 transducer allows you to see fish and bait swimming under your
boat — in real time. To truly appreciate Panoptix, you have to see
it for yourself. Panoptix is compatible with Garmin GPSMAP®
7400/7600 series, GPSMAP 8000/8500 series and GPSMAP
721/741/820/840/1020/1040 series chartplotters.

Garmin Panoptix PS60 Thru-hull Down transducer
Features:

• LIVEVš DOWN – Provides real-time moving sonar images below the
  boat; see small baitfish and large target fish swimming around and
  pinpoint their distance left or right and their depth
• REALVš 3-D DOWN – Scans the area below the boat from front to
  back and side to side, providing a full 3-D view showing bottom
  contour changes, fish and structure, even while stationary
• REALVš 3-D HISTORICAL – Provides a wealth of historical sonar
  data – used for finding fish located throughout the entire water
  column in 3-D, from bottom to surface
• MOUNTING OPTION – Stainless steel stem, fairing block and
  mounting hardware allow for thru-hull installation on a boat with a
  deadrise between 0 and 25 degrees

Specifications:

Temperature range	Operating: 0 C to 40 C Non-operating: -40 C to 70 C
Requencies supported	417 kHz
Maximum range	300 feet
Input Voltage	10-35vDc
Input Draw	<0.8A @ 12 V
Dimensions	19.5” x 8.8” x 10.9”

What’s in the Box:

• PS60 thru-hull down transducer (integrated 30 foot network
  cable, 15 foot power cable)
• Faring block
• Stainless steel thru-hull mounting hardware
• Split ring RJ45 connector
• Documentation
