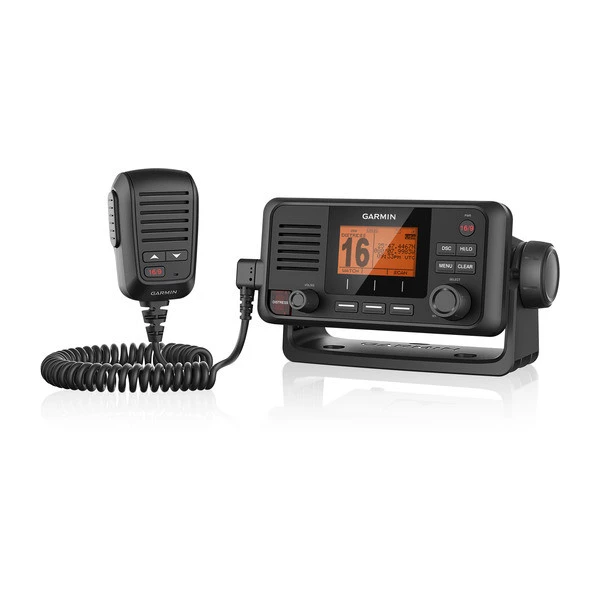

Garmin VHF110 VHF Radio

Communication is critical on the water. With the VHF 110 radio,
you can stay in contact with the shore and other boats in your
area. So, no matter where you are or where you’re headed, you’ll
maintain communication for a safer voyage.

During an emergency situation, the 25 W transmit power of the
VHF 110 gives all fishermen, sailors and cruisers confidence at
their fingertips.

Easy to install and use, just plug and play via the NMEA 2000
network to compatible Garmin chartplotters and MFDs. Provides
standard Class D DSC functionality (distress calling and direct
calling with user programmed MMSI). Includes frequency bands for
all U.S., Canadian and international marine channels and 10 NOAA
weather channels. Also NMEA 0183 compatible and includes 2-way
hailer system for onboard communication.

Because your helm is a source of pride, we’ve designed the VHF
110 marine radio to complement GPSMAP® 7×2/9×2, GPMAP 10×2/12×2,
GPSMAP 7400/7600 and GPSMAP 8400/8600 chartplotters and MFDs.

Garmin VHF 110 marine VHF Radio Features:

• Fixed-mount with plug and play via the NMEA 2000® network
• Standard Class D Digital Selective Calling (DSC) functionality
  (distress calling and direct calling with user programmed
  MMSI)
• In case of trouble, DSC may improve your chances of a rapid
  rescue
• 25 W of transmit power
• Frequency bands: all U.S., Canadian and international marine
  channels; 10 NOAA weather channels

Specifications:

Dimensions	3.4 x 6.7 x 5.8 (8.5 x 17.0 x 14.6 cm)
Water rating	IPX7
Compass safe distance	27.6 (70 cm)
NMEA 2000	Yes
NMEA 0183	Yes
Digital Selective Calling	Yes
Frequency bands	All USA, Canadian, and International marine channels; 10 NOAA weather channels
Operating voltage	12.0 Vdc
Current draw	Standby 350 mA; Receive 600 mA; Transmit from 2.0 A to 6.0 A (from 1 W to 25 W)
hailer output	20w at 4 ohms
Hailer horn impedance	4 ohms
External speaker impedance	4 ohms
Maximum antenna gain	9 dBi

What’s in the Box:

• VHF 110 marine radio
• Bail mount with knobs and mounting hardware
• Protective cover
• Trim ring snap cover
• Flush mount gasket
• Power cable
• Documentation
